MR 900 - 12 Channel ECG Machine

Features

  • 12-channel A4 size ECG printing
  • 7″ color LCD display with touch screen
  • ECG measurement & interpretation facility
  • More than 50 ECGs on a full-charge battery
  • Patient data input via touch screen
  • Configurable printing formats
  • PC & memory stick download

Technical Specifications

Measuring Parameters

SpecificationDetails
Leads12 Standard Leads
Mode of OperationAuto / Manual
Long Lead PrintYes
ECG Print StyleAuto Mode: 3×4+1R, 3×4+3R, 6×2, 12 Manual Mode: 3L, 6L, 12L
Display LeadYes
Display Type7″ Color TFT / LCD
Display Resolution800 x 480 Pixels
Frequency Response0.05 to 150 Hz
Sweep Speed12.5 / 25 / 50 mm/s
Sensitivity5 / 10 / 15 / 20 mm/mV
CMRR (Common Mode Rejection Ratio)105 dB
Input Impedance>10 M Ohms
Patient Storage Data25 Patients
Printer TypeThermal Printer
Paper Width210 mm
Memory Stick InterfaceYes
InterpretationYes

Characteristics

SpecificationDetails
Weight2.730 Kg
Dimensions (L × B × H)308 × 240 × 80 mm

Electrical

SpecificationDetails
Power Supply100-240 VAC, 50-60 Hz, 1.5A – 0.8A
Power Consumption65 Watt
FiltersDigital AC / 50 Hz
Battery Rating11.1 V, 5200 mAh, Li-ion Battery
Recharging Time4 Hours Max.
Operating Time> 50 ECG’s

Operation & Storage Conditions

SpecificationDetails
Temperature25 – 55°C
Pressure50 – 60 KPA
HumidityUp to 90% non-condensing

MR 300

Features

  • 2.8″ color TFT display
  • 12-lead simultaneous acquisition
  • Inbuilt 3″ thermal array printer
  • ECG measurement & interpretation
  • Last patient memory
  • 100+ ECG on battery

Technical Specifications

Measuring Parameters

SpecificationDetails
Leads12 Standard Leads
Mode of OperationAuto / Manual
Long Lead PrintYes
ECG Print Style3 , 3+1
Display LeadYes
Display Type2.8″ Color TFT
Display Resolution320 x 240 Pixels
Frequency Response0.05 to 125 Hz
Sweep Speed12.5 / 25  mm/s
Sensitivity5 / 10 / 15 / 20 mm/mV
CMRR (Common Mode Rejection Ratio)> 90 dB
Input Impedance>100 M Ohms
Printer TypeThermal
Paper Width80 mm
InterpretationYes

Characteristics

SpecificationDetails
Weight850 gm
Dimensions 250(L) × 155(B) × 65(H) mm

Electrical

SpecificationDetails
Power Supply110VAc -260 VAC, 50-60 Hz
Power Consumption30 Watt
FiltersDigital AC / 50 Hz
Battery Rating7.4 V, 2200 mAh, Li-ion Battery
Recharging Time4 Hours Max.
Operating Time> 100 ECG’s

Operation & Storage Conditions

SpecificationDetails
Temperature25 – 55°C
Pressure50 – 60 KPA
HumidityUp to 90% non-condensing

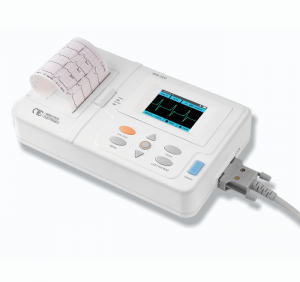

MR 300

Features

  • 5″ color TFT display

  • 12-lead simultaneous acquisition

  • Inbuilt 3″ thermal array printer

  • More than 50 ECGs on full-charge battery

Technical Specifications

Measuring Parameters

SpecificationDetails
Leads12 Standard Leads
Mode of OperationAuto / Manual
Long Lead PrintYes
ECG Print Style3, 3+1
Display LeadYes
Display Type5″ Color TFT
Display Resolution800 x 480 Pixels
Frequency Response0.05 to 125 Hz
Sweep Speed12.5 / 25 / 50 mm/s
Sensitivity5 / 10 / 15 / 20 mm/mV
CMRR (Common Mode Rejection Ratio)> 90 dB
Input Impedance>100 M Ohms
Patient Storage Data5 Patients
Printer TypeThermal Printer
Paper Width80 mm x 20 mtr
HR Range30 to 240 BPM
HR Accuracy+/- 2 BPM
Sampling Rate500 Samples/sec

Characteristics

SpecificationDetails
Weight1 Kg
Dimensions 250(L) × 155(W) × 65(H) mm

Electrical

SpecificationDetails
Power Supply100-240 VAC, 50 Hz, 3 A
Power Consumption27 Watt
FiltersDigital AC / 50 Hz
Battery Rating7.4 V, 2900 mAh, Li-ion Battery
Recharging Time8 Hours Max.
Operating Time> 40 ECG’s
Leakage Current< 10 micro Amps

Operation & Storage Conditions

SpecificationDetails
TemperatureOperating 15 – 40°C
Storage 10 – 50°C
Pressure50 – 160 Kpa
HumidityUp to 90% non-condensing
