PRENATAL HEARTBEAT
Fetal Doppler
Model : 230

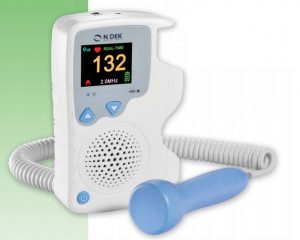

The Nidek Fetal Doppler is a hand-held ultrasound transducer used to detect the heartbeat of a fetus for prenatal care.
Sometimes called a Baby Doppler, the Fetal Doppler, is used to detect Fetal Heart Rate (FHR) after about 12 weeks of pregnancy. It Can be used in hospitals, clinics or at home.
FEATURES
- Compact Design
- Easily and Convenient to operate
- High-fidelity, Crystal Clear Sound
- Sound Output with earphone or in-built speaker
- High sensitivity Doppler Probe
- Low ultrasound dosage
- Display with color LCD
- Displays work parameters and Fetal heart rate value
- Water proof ultrasonic probe (IPX1 Rating)
- Battery energy indicator
- Automatic switch-off
- Sound alarm function when FHR is not in the normal range.
![Fetal Doppler](https://www.inspirationmedical.in/wp-content/uploads/2019/07/Fetal-Doppler-300x240.jpg 300w, https://www.inspirationmedical.in/wp-content/uploads/2019/07/Fetal-Doppler.jpg 623w)
SPECIFICATIONS
Five Working Modes | Real-time mode, Average mode, Manual mode, Freeze mode, Wave/Curve mode |
Nominal Frequency | 2.0 MHz |
Working Frequency | 2.0 MHz ± 10% |
Ultrasound intensity | <10mW/cm2 |
FHR Measuring range | 50~240bpm |
FHR resolution | 1bpm |
FHR accuracy | ±1bpm |
Power consumption | <1W |
Recommended Battery | 2 X 1.2 V Ni-Mh Rechargeable battery |
Display | 45mm X 25mm Colour LCD |
Dimensions | 135mm X 95mm X 35mm |
Weight | 500gm (including battery) |
