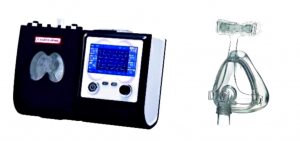

Non-invasive ventilator
| Model | BPAP20 | BPAP25 | BPAP30 |
|---|---|---|---|
| Mode | CPAP, S, T, S/T | CPAP, S, T, S/T | CPAP, S, T, S/T |
| IPAP Range | 4-20 CmH₂O | 4-25 CmH₂O | 4-30 CmH₂O |
| EPAP Range | 4-20 CmH₂O | 4-20 CmH₂O | 4-20 CmH₂O |
| CPAP Range | 4-20 CmH₂O | 4-20 CmH₂O | 4-20 CmH₂O |
| I-Trigger | Auto, 1-6 | Auto, 1-6 | Auto, 0.1-0.6s |
| E-Trigger | Auto, 1-6 | Auto, 1-6 | Auto, 0.1-0.65 |
| Breath Rate (BPM) | 2-40 bpm | 2-40 bpm | 2-40 bpm |
| Noise Level (dBA) | <28 dB | <28 dB | <28 dB |
| CPAP Ramp (minutes) | 0-60 minutes | 0-60 minutes | 0-60 minutes |
| Display Data | Vt, Vleak, Rate, I:E | IPAP, EPAP, Rate (bpm), I:E, Vt, Vleak, Mvent, Trigger I/E | IPAP, EPAP, Rate (bpm), I:E, Vt, Vleak, Mvent, Trigger I/E |
| Alarms | Tube alarm, Apnea alarm & power failure | Tube alarm, Apnea alarm, High/Low rate alarms & power failure | Tube alarm, Apnea alarm, High/Low rate alarms, Mvent alarm & power failure |
| Dimensions | 18 × 27 × 11 cm | 18 × 27 × 11 cm | 18 × 27 × 11 cm |
| Weight | 1.7 Kg | 1.7 Kg | 1.7 Kg |
| Screen Size | 2.4 inch | 4.3 inch | 4.3 inch |
| Heated Humidifier | Integrated | Integrated | Integrated |
| Memory | Micro SD Card – 8 GB | Micro SD Card – 8 GB | Micro SD Card – 8 GB |
| Warranty | 2 years | 2 years | 2 years |
| Electrical Characteristics | |
|---|---|
| Electrical Supply | 100-240V, 50-60 Hz |
| Power Consumption | <50W with Humidifier |
| 93/42/EC Classification | Class II A |
| Altitude | From Sea level to 2700 mtrs |
