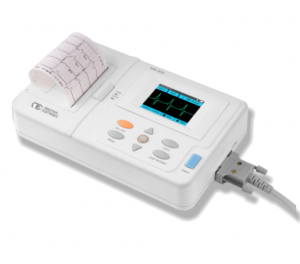

MR 300 Mini
Features
- 2.8″ colour TFT display
- 12 lead simultaneous acquisition
- Inbuilt 3″ thermal array printer
- ECG measurement & interpretation
- Last Patient Memory
- 100+ ECG on Battery
Technical Specifications
Measuring Parameter
| Specification | Details |
|---|---|
| Leads | 12 Standard Leads |
| Mode of Operation | Auto/Manual |
| Long Lead Print | Yes |
| ECG Print Style | 3, 3+1 |
| Display Lead | Yes |
| Display Type | 2.8″ Color TFT |
| Display Resolution | 320 x 240 Pixels |
| Frequency Response | 0.05 to 125 Hz |
| Sweep Speed | 12.5/25 mm/s |
| Sensitivity | 5/10/15/20 mm/mV |
| CMRR | > 90 dB |
| Input Impedance | > 100 M Ohms |
| Printer Type | Thermal |
| Paper Width | 80 mm |
| Interpretation | Yes |
Electrical
| Specification | Details |
|---|---|
| Power Supply | 110 VAC – 260 VAC, 50-60 Hz |
| Power Consumption | 30 Watt |
| Filters | Digital AC/ 50 Hz |
| Battery Rating | 7.4 V, 2200 mAh, Li-Ion Battery |
| Recharging Time | 4 Hours Max |
| Operating Time | > 100 ECG’s |
Operating & Storage Conditions
| Specification | Details |
|---|---|
| Temperature | 25-55°C |
| Pressure | 50-60 KPA |
| Humidity | Up to 90% non-condensing |
Characteristics
| Specification | Details |
|---|---|
| Weight | 850 Grams |
| Dimensions | 250 (L) X 155 (B) X 65 (H) mm |
