INFUSION PUMP

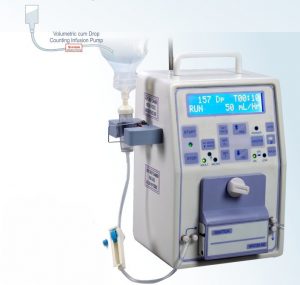

The Simtek INFUTEK 500 volumetric cum Drop counting Infusion Pump has been designed for high levels of safety & performance with simple operation using latest micro controller based system. The Simtek INFUTEK 500 comprehensive range of features makes it ideal for general, critical care & neonatal infusion where accuracy is important.
Technical Specification
| Specification | Details |
|---|---|
| Pumping Mechanism | Linear Peristaltic |
| Drop Sensor | External |
| Dimensions (mm) | 140 x 150 x 215 |
| Housing | Aluminum |
| Coating | Rust-proof, durable |
| Weight | 3 Kg |
| Mains Voltage | 220 VAC, +/-10%, 50 Hz |
| Power Consumption | 10 W |
| I.V. Set mL Conversion | Can be calibrated to all I.V. sets |
| I.V. Set Tubing | Accepts most I.V. sets |
| Drop Rate Range | 1 – 150 drop/min |
| Volume Rate Range | 1 – 450 mL/Hr |
| Drop Rate Resolution | 1 drop/min |
| Free Flow Protection | Activated when the door is open |
| Potential Free Contact | For nurse call in case of alarm |
| Specification | Details |
|---|---|
| Volume Rate Resolution | 1 mL/Hr |
| Target Volume | 1 – 540 mL |
| Target Volume Steps | 1 mL |
| Elapsed Time | 00:00 – 24:00 hrs |
| Target Time Steps | 1 min |
| Total Drops Infused | 1 – 9999 drops |
| Keep Vein Open (KVO) | User programmable |
| Battery Operation | 2 – 3 hrs @ 25 drops/min |
| Battery Charging Period | 20 hrs automatic |
| Battery Type | Rechargeable NiMH |
| Alarm Indication | Vein blocks, Door open, Battery low, Target volume, Target time, Excess flow, Less flow (with troubleshooting messages) |
| Bolus | For micro/adult fast infusion |
| Purge / Flush Memory | For removal of air |
| Memory | For set rates & limits |
