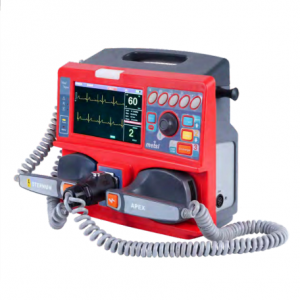

Vital Wave
Features
- 7″ colour LCD with bright high-resolution display
- Easy energy selection up to 270 joules
- Less than 10 seconds for charging 200 joules
- Capability of ECG monitoring and defibrillation
- Event trend and storage up to 24 hrs
- ECG acquisition via paddles, ECG cable, and multi-function therapy electrodes
- Upgradability to monitor SpO2, NIBP & EtCO2
- Manual, Synchronized Cardioversion, AED & pacer modes
- Paddle contact indication with voice prompt support
- Adult & Pediatric patient compatibility
- Self-test facility providing “Ready” indication on screen
- Displays selected and delivered energy
- Advisory protocols comply with AHA & ERC guidelines
Technical Specifications
Measuring Parameter
| Specification | Details |
|---|---|
| Channel | 3 Channel |
| Electrode | 5/6 Leads |
| ECG Acquisition | Patient Cable, Paddles and multifunction therapy electrodes |
| Display | 2 Waveforms with HR and Joules selected |
| Lead | Lead I, II, III, aVR, aVL, aVF, V |
| Gain Selection | 5/10/15/20 mm/mV |
| Sweep Speed | 12.5, 25 or 50 mm/sec |
| Heart Rate Range | 30-240 bpm |
| Heart Rate Accuracy | ± 2 bpm |
| Frequency Response | 0.05 to 40 Hz |
| CMRR | >100 dB |
| Input Impedance | >100 M Ohms |
| AED Mode | Text & voice prompts |
| Standard Discharge Sequence | Impedance detection in range of 25-300 ohms |
| Automatic Analysis | For shockable & non-shockable rhythm |
| Multifunction Therapy Electrodes | Ability to filter CPR artefacts without interrupting chest compression |
| Pacemaker | External transcutaneous pacing
Fixed & demand mode of operation Frequency: 30-240 ppm Impulse current: 0-200 mA Pulse width of 40 ms |
Electrical
| Specification | Details |
|---|---|
| Power Input | 100 – 240 V AC, 50 Hz |
| Battery Rating | 14.8 V / 4400 mAh, Li-Polymer |
| Charging Time | 8 Hours |
| Operating Time | >50 shocks (270 joules) or more than 4 hours monitoring without printing |
Display
| Specification | Details |
|---|---|
| Type | Color TFT display |
| Size | 7″ Diagonally |
| Resolution | 800 x 480 Pixels |
Accessories
| Specification | Quantity |
|---|---|
| 5/6 Lead ECG Cable | 1 No. |
| Disposable ECG Electrodes | 1 No. |
| Power Cord | 1 No. |
| User Manual | 1 No. |
| External Defibrillator Paddles | 1 Set |
| Trolley with Lockable Castors | 1 No. |
| Multifunction Therapy Electrodes | 10 Sets (Optional) |
| Li-Ion Battery | 1 No. |
| Recorder Paper Rolls | 10 Nos. |
| Gel Bottle | 5 Nos. |
| SPO2 Patient Cable | 1 No. (Optional) |
Recorder
| Specification | Details |
|---|---|
| Type | High Resolution thermal array recorder |
| Printing Speed | 25 mm/sec |
| Printer Paper Size | 57 mm x 20 Mtr. |
| Details on Print | HR, ECG waveform along with energy delivery, Date, Time, Patient Details (ID, name, age, sex), Joules selected, Sweep speed, and Gain |
General
| Specification | Details |
|---|---|
| Weight | 5.4 Kg |
| Dimensions | 403 (L) x 152 (H) x 324 (W) mm |
| Working Temperature | 0-45°C |
| Relative Humidity | 30-90% non-condensing |
| Alarm Settings | User selectable |
| Self Test Facility | Automatic, Manual |
| Dust & Water Protection | IP 44 |
| Charge/Discharge | Both paddles & Main Unit |
| Transport Facility | Suitable for Ambulance on ground |
