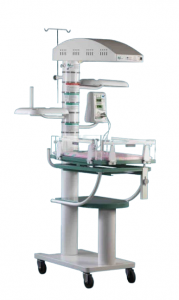

Jeevak Care/ Warmer
Innovation
Efficacy personified due to –
➡️ Rotating Saline Stand: Extremely useful for shifting the IV line from one side to the other, a feature not available in any model worldwide.
➡️ Rotatable Temperature Controller: Allows adjustment of viewing angles as per user requirements (rotation is limited).
➡️ Two Rotatable Monitor Trays: Can be brought forward when required or parked behind when not in use.
➡️ Rotatable Heater Box: Facilitates ease during X-ray procedures.
➡️ Two Extra Rotatable Rings: Users can add any accessories as needed.
Upgradable Model due to extra rings that allows addition of new features like C-Pap, “Shreeyash” ventilator, Suction etc. if & when required, hence your model never becomes absolute. A feature made available only by “Shreeyash”.
Air & Skin Controlled System
Intelligence Personified
➡️ All Shreeyash units come equipped with a comprehensive 5-level safety system to ensure the utmost safety of the infant.
➡️ Advanced air, skin, and manual controls maintain the baby cradle’s temperature below 38°C.
➡️ New microprocessor chips provide pinpoint accuracy in monitoring and maintaining the baby’s temperature.
➡️ Users can select their preferred mode of operation for the open care incubator.
➡️ The heater automatically shuts off at 38°C, regardless of the selected mode, ensuring safe
There modes of warming:
• Servo Air Temperature Control –
The Clinician can set and control the actual Air temperature surrounding the Baby.
Range – 26°C to 38°C
• Servo Skin Temperature Control – The Clinician can set and control the actual Skin temperature of the Baby. Range – 26°C to 38°C
• Manual Control Mode –
In this mode the user can select the time of operation in manual mode along with the heater output in increment of 5%.

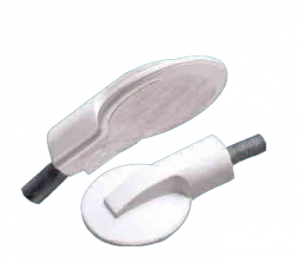

Skin Sensor:
Extra Large diameter of sensor helps in
- More accurate temperature reading of Neonate.
- Helps easy fixation.
Sensor to baby contact material plated for improved sensitivity. Soft silicon sensor cable enhances flexibility

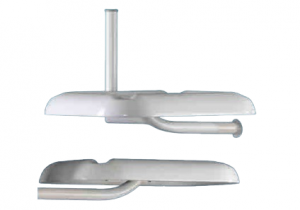

Designer Trays :
Utility personified
Infrared Heater:
- CE marked German make ceramic heater or efficient Quartz crystal heaters available.
- The choice is yours!

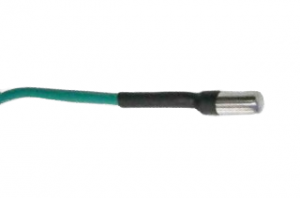

Air Sensor:
- Extra Air Sensor provided to control the surrounding temperature of the baby.
- The user can fix the Air Sensor on the baby mattress to ensure the temperature surrounding the baby never exceeds 38°C.
Technical Details
| Model | Jeevak Warmer |
|---|---|
| Height | 1880 mm (74 Inches) |
| Baby Bed Size | 735 x 495 mm (29″ x 19.5″) |
| Monitor Tray Size | i) 325 mm x 225 mm ii) 295 mm x 225 mm |
| Working Level | 950 mm from ground |

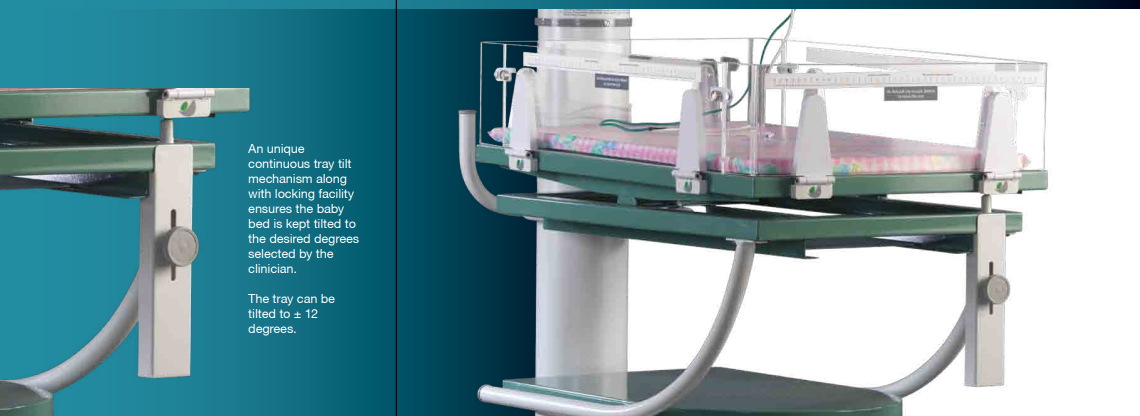

| Tilt | +12 degrees |
| Side Supports | Acrylic Drop Down Type |
| Electrical Rating | 230 VAC + 10% 50 Hz |
| Observation Lamp | CFL (13 Watts) |
| Heater Wattage | 600 Watts |
| Heater Type | Ceramic |
| Electronic Controller | Micro Controller based servo Proportionate control with feather touch keys for temp. setting |
| Display | 4 Digit Green LED for indicating actual Air temp surrounding the baby, Apgar time, 4 Digit Green LED for indicating baby’s actual temp. in °C & °F |
| Alarms | Over Temp., 2nd safety active, Sensor fail, 3rd Safety active, Apgar time, Feed time |
| Best Environment | 22 to 28 degrees for operation |
Accessories at Extra Cost:
- Cage to hold oxygen cylinder.
- Neovac slow suction (electrically or venturi operated).
- Manometer, humidifying bottle with flow meter.
- Resuscitation kit.
- Air oxygen blender.
- Storage compartment.
