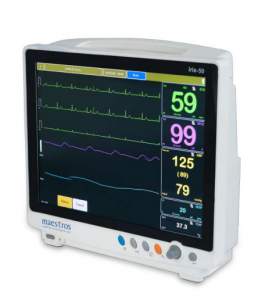

Metsl Vital Tracker 15
- Larger 15″ color TFT display
- Up to 7-channel programmable waveforms
- Supports adult, pediatric, and neonatal applications
- 4 hours of operation on a fully charged battery
- 96 hours of trend storage
- Inbuilt and external printer options
- Wired and wireless CMS connectivity
- Upgradeable to capnograph and IBP
Technical Specifications
ECG
| Parameter | Specification |
|---|---|
| Channel | 5 channel |
| Electrode | 3/5 lead |
| Display Lead | Waveforms with HR |
| Lead | Lead I, II, III, aVr, aVI, aVf, V |
| Gain Selection | 0.5, 1, 1.5, or 2 |
| Sweep Speed | 12.5, 25, or 50 mm/sec |
| Heart Rate Range | 30-240 bpm |
| Heart Rate Accuracy | ±2 bpm |
| Frequency Response | 0.05 to 40 Hz |
| CMRR | >10 dB |
| Input Impedance | >100 MOhms |
SpO2
| Parameter | Specification |
|---|---|
| Technique | Transmission method |
| Display | Plethysmograph, pulse amplitude, indicator, pulse rate & % of oxygen saturation |
| Sweep Speeds | 12.5, 25, or 50 mm/sec |
| SpO2 Range | 0-100% |
| SpO2 Accuracy | ±2 for 70-100%, ±3 for 40-70% |
Display
| Parameter | Specifications |
|---|---|
| Type | Color TFT Display |
| Size | 15″ diagonally |
| Resolution | 800×600 dots |
Electrical
| Parameter | Specification |
|---|---|
| Power Input | 90-270 V AC, 50-60 Hz |
| Inbuilt Battery Type | Li-ion |
| Battery Rating | 11.1 V, 4000 mAh |
| Charging Time | >2 hours |
| Power Consumption | <35 W |
Temperature
| Parameter | Specification |
|---|---|
| Sensor | Compatible to YSI 400 series |
| Resolution | 0.2°C |
| Measurement Range | 12 to 43°C |
| Unit | °C/°F |
General
| Parameter | Specification |
|---|---|
| Dimensions | 365(L) x 182(W) x 320(H) mm |
| Weight | 3.5 kg max |
Respiration
| Parameter | Specifications |
|---|---|
| Method | Impedance Pneumography |
| Display | Respiration waveform with RR |
| Range | 0 to 150 bpm |
| Apnea Alarm | 10-90 seconds |
| Sweep Speed | 5/10/12.5/25 mm/sec |
NIBP
| Parameter | Specifications |
|---|---|
| Method | Oscillometric measurement |
| Display | Systolic, Mean, Diastolic |
| Input Impedance | >100 MOhms |
| Operation Modes | Auto, Manual, Stat |
| Interval | 2-120 minutes |
| Range | 0-300 mmHg |
| Pressure Accuracy | ±3 mmHg |
